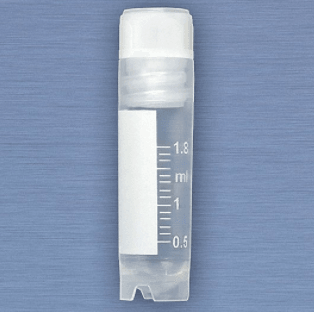

CryoClear™ Cryogenic Vials
Globe Scientific’s CryoClear™ vials are designed for the cryogenic storage and transport of biological specimens at temperatures as low as -196ºC. The vials feature an innovative screw cap that is co-molded with a layer of thermoplastic elastomer (TPE). This special process provides the leak-proof benefits of an o-ring, while eliminating the risk of contamination and sample loss associated with the use of separate o-rings. Each vial is printed with a unique barcode that may be used for automated data collection, accurate sample inventory or to conceal the sample’s identity.
Features and Benefits:
- Unique barcode printed on each vial for automated data collection
- White writing surface for specimen identification
- Printed graduations for accurate measurements
- Vials and caps are autoclavable
- Produced from medical grade raw materials that will not discolor after re-sterilizing
- Tamper evident packaging
- Self-standing tubes interlock in Globe workstation racks
- Cryoclear Product Brochure
Purity Guaranteed:
- Manufactured, assembled and packaged in an ISO 7 (Class 10,000) cleanroom and never exposed to outside contaminants. Meets FDA, GMP and ISO Quality Standards
- Lot certified: samples from every lot are shipped to an independent laboratory where they are certified to be Human DNA free, DNase free, RNase free, Pyrogen free and ATP free
Technical Details:
- Temperature range: -196º to 121ºC
- Autoclavable
- Sterilized by beta radiation (SAL 10-6)
- Pressure tested at 95 kPa (0.95 bar, 14 psi)
Material:
- Tube: Medical grade polypropylene (PP)
- Cap: Medical grade polyethylene (PE) co-molded with thermoplastic elastomer (TPE)
| All cryogenic vials have a risk of possible explosion or biohazard release on warming if liquid nitrogen enters the vial. None of the vials we have found are rated for storage under liquid nitrogen for this reason. If storing samples under liquid nitrogen the recommended method is to use Nunc CryoFlex tubing to safely encapsulate the tube. |
Specifications:
| Mfr No. 3001 |
|
| Mfr No. 3002 |
50/Bag, 10 Bags/Case - SELF STANDING (MEA TESTED OPTIONAL)
|
| Mfr. No. 3003 | CryoClear Vials, 2.0mL, STERILE, Internal Threads, Attached Screwcap with Co-Molded Thermoplastic Elastomer (TPE) Sealing Layer, Round Bottom, Printed Graduations, Writing Space and Barcode - ROUND BOTTOM |
| Mfr. No. 3005 | CryoCLEAR Vials, 4.0mL, Sterile, Internal Threads, Attached Screwcap with Molded O-Ring, Round Bottom, Self-Standing, Printed Graduations, Writing Space and Barcode, 50/Bag, 10 Bags/Case |
